EDL-RECs are OneBox Solutions and absolute "no brainer" – you dont need Win/Mac host or extra operator.

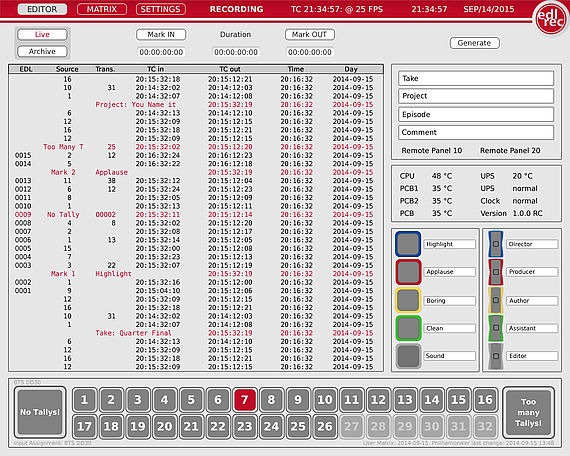

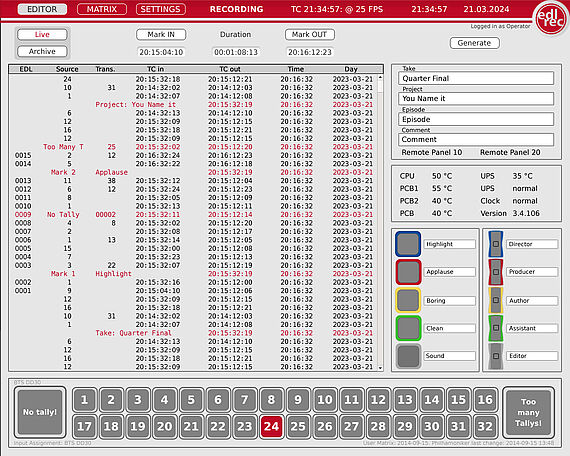

Operation

  • Status information is updated continuously.

  • Metadata can be modified at any time.

  • EDLs can be exported while recording.

  • The archive provides access to previous productions.

  • Timecode formats (PAL, NTSC (DF & NDF)) are recognized automatically, interruptions do not stop recording

Configuration

  • Equipped with up to 200 inputs/contacts

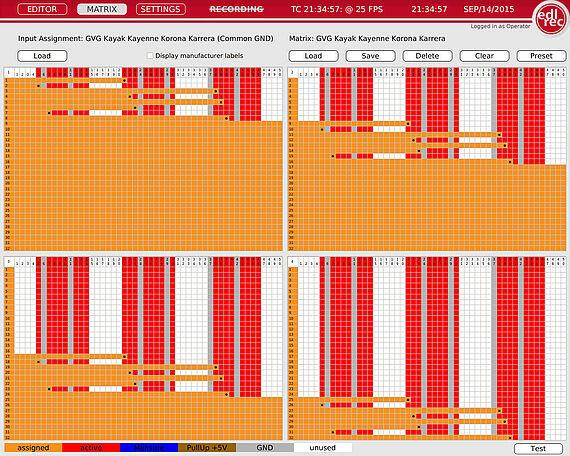

  • Input assignments for common vision mixers ie preloaded (modifiable) pin assignments.

  • Newer models can be added at any time. Regularly -used production configurations can be stored in user memory.

  • Individual pin views simplify installation.

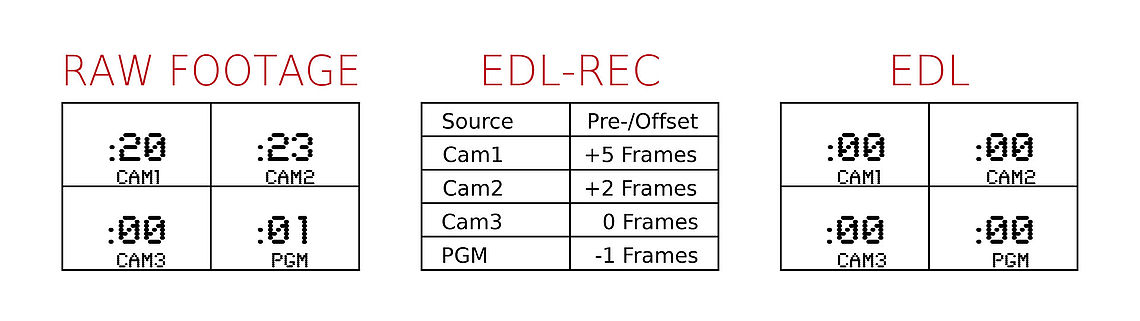

Pre and Offset settings mean everything is ALWAYS IN SYNC!

Wireless cameras, vision mixers, DVEs, multiple timecode generators, synchronizers, …
are just a few reasons why multi-camera EDLs are not always automatically in sync.

While generating the EDLs in the EDL-REC every separate source can be given an individual pre or post offset time - in frames.

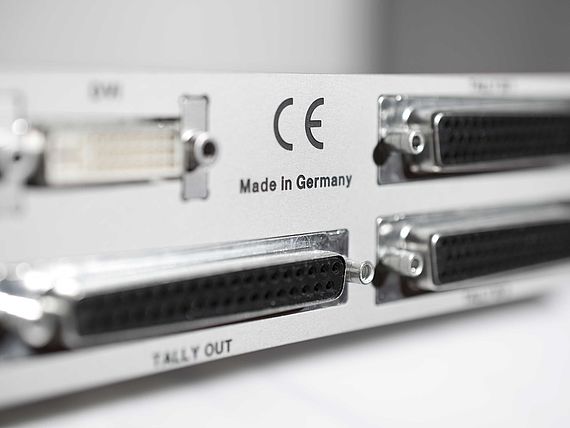

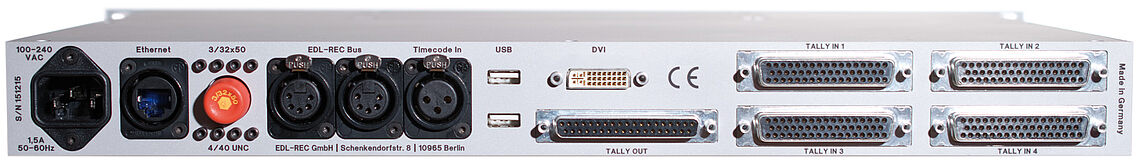

Connections

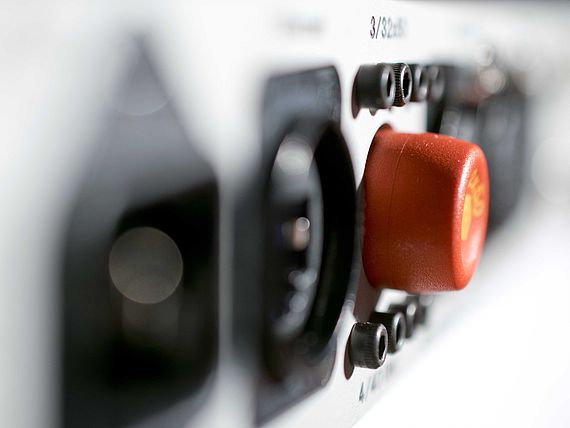

  • Screw-on/lockable connectors ensure secure connections in demanding (OB) day-to-day operation.

  • 4 x 50-pole D-sub inputs enable all relevant tally lights to be recorded even if they are attached to different outputs of the vision mixer (19” version).

  • The Tally Out allows an additional configuration and function check (19” version).

  • The UPS battery can be accessed for easy maintenance through the battery compartment in the cover (19” version).
  EDL-REC blk EDL-REC pro EDL-REC 19"
EDL Channels 3 – 10 3 – 18 3 – 34
Channel upgrades + + +
Tally Inputs 3 – 8 3 – 16 3 – 196
Tally Outputs 32
Serial Tallys optional +
Redundant storage +
Display 3 LED 3 LED LCD
Ethernet +
USB ports 3 3 4
Power 12 V 12 V 90 – 240 V
UPS +
Rackmount M3 M3 19"
Dimensions 19 x 6 x 24 cm 19 x 6 x 30 cm 48 x 4.4 x 32 cm
Warranty 1 Year 2 Years 3 Years
Spare parts availability 3 Years 5 Years 10 Years
Including Power Supply & 1 Marker 1 Marker 1 Marker
Accessories Tally Snake Tally Cable Tally Splitter
Price from € 4395 € 8795 on configuration

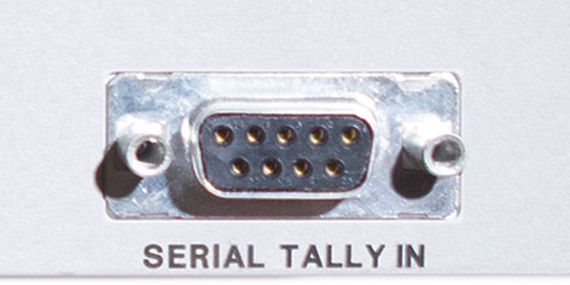

Serial Tally Input

  • Sony has always renounced tally switching outputs with its large consoles. You either buy their optional tally boards or use Sony’s serial tally system. Depending on the workload, hardware and software of your control systems these outputs may lead to greater time variations for the tallies. We have developed a serial tally input for the EDL-Recorder in order to record cuts and transitions with the necessary precision when working with Sony vision mixers without their tally board(s) option.
  • Our serial interface runs reliably, autonomously and accurately on the "Serial Tally Port" or "Editor Panel" terminal.
  • 1 x 9 pin D-Sub Input for Sony Serial Tally Port Protocol (RS-422).
  • Can be retrofitted and can be combined with parallel inputs (19” version).

Frequently asked questions

An EDL channel means a multiclip source written into the EDL-REC EDLs.

For example, an EDL-REC blk has 8 physical tally inputs, but can write up to 10 EDL channels into the EDLs.

Tally inputs and EDL channels are fixed to each other.



Sources cut to PGM – without tally signalling to the EDL-REC – such as players/feeds/servers, cameras without separate recording or stills/black/bars/... are internally recorded as "No Tally" events in the EDL-REC.



When generating an EDL, "No Tally" can then be assigned in the EDL-REC blk, for example EDL channel 9.

EDL channel 9 could then be used, for example, with the PGM recording in the multiclip.



More than 2 tallys incoming at the same time in the EDL-REC – as for example with DVE/PiP effects – are internally recorded as "Too many Tallys" events in the EDL-REC.



When generating an EDL, "Too many Tallys" can then be assigned in the EDL-REC blk, for example EDL channel 10.

EDL channel 10 could then be used, for example, with a Clean/AUX recording in the multiclip.



"No Tally" and "Too many Tallys" events can also be assigned to an EDL channel together.

We recommend inserting a PGM recording in the EDLs for this.



For example, an EDL-REC blk with 10 EDL channels can generate:

- EDLs with 4 cameras

- EDLs with 4 cameras + PGM

- EDLs with 8 cameras + PGM & Clean.

Compatible NLEs

• compatible with AVID Media Composer® from 6.0 to now

• multicam linecut with corresponding multiclip

• as multicamera AAF .aaf (Win/Mac)

• easy relinking with copy and paste

Adobe Premiere® as multicamera XML .xml (Win/Mac)

Apple Final Cut 7® as multicamera XML .xml

• DaVinci Resolve®

• Apple Final Cut X®

• Grass Valley Edius®

Compatible Vision Mixers

… and specific models on request.

ATEM via GPI and Tally Interface

Granite 100 | 1000 | 2000 | 5000

DD5 | 10 | 20 | 30

SE-600 | 900 | 2000 | 3000 | RMC-140

HVS-100 | 110 | 350HS | 390HS | 490 | 1200 | 2000 | 4000 | 5000 | 6000

1200 | 4000 | INDIGO | Kalypso | Kayak | Kayenne | Karrera | Korona | K-Frame XP

KM-H2500 | 3000

TriCaster 2 Elite | TriCaster TC1 / VMC1 | TriCaster 8000 | TriCaster 460 | TriCaster 410

(direct and/or via JLCooper® e/gBOX)

AV-HS7300 | AV-HS6000 | AV-UHS500

Ultrix Acuity | Carbonite | CrossOver | Graphite (over opt. Audio Breakout Module) | Vision

Kula | Kahuna

XVS-6000 | XVS-6000 Packs | XVS-7000 | XVS-8000 | XVS-9000 | ICP-X7000 | MVS-6000 | MVS-6530 | MVS-7000 | MVS-8000 | DVS-9000

(via EDL-REC Serial Input or ICP-X7000 + MKS-X7701 | DCU-8000 + MKS-8701)

XVS-G1 | MLS-X1 | MVS-3000 | MFS-2000 | MCS-8M | DFS-900M | BRS-200

110HD | XtenDD (HD)

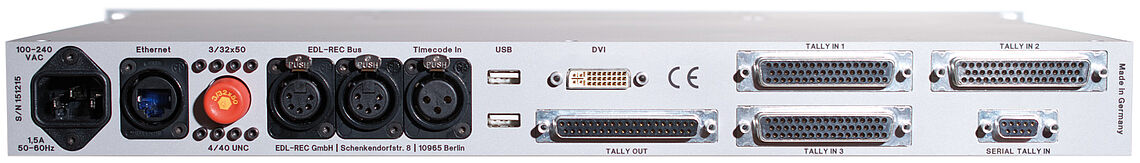

Technical Data

  • In/Out:
    • Tally In – parallel:
      • 4 x 50 pin D-Sub Connector (female)
      • Voltage range 0-48 Volt
    • Tally In – serial:
      • 9 pin D-Sub Connector (female)
      • Sony® Serial Tally Port Protocol (RS-422)
    • Tally Out:
      • 37 pin D-Sub Connector (female)
      • Voltage range 0-48 Volt
    • EDL-REC Bus:
      • 2 x XLR 5 pin Connector (female)
      • 12 Volt
      • not DMX!
    • In:
      • Power – IEC C14
      • LTC EBU/SMPTE – XLR 3 pin Connector (female)
    • PC:
      • DVI-I (incl. VGA) 1280 x 1024 Resolution
      • 2 x USB Type A Connector (Front- & Back)
      • Ethernet
  • Power Supply: 100-240 VAC | 47–63 Hz
  • Power Consumption: max. 1.5 A (Standby 0.02 A)
  • Operating Environment: -10 to +50°C
  • Standards: CE, EN
  • Dimensions & Weight:
    • EDL-REC
      • 19'' 1 RU
        • 482.6 x 43.8 x 321 mm
      • 3.9 kg
    • Shipping Carton
      • 55 x 50 x 28 cm
      • 1.6 kg (without foam)
  • Delivery Contents:
    • EDL-Recorder
    • Operation Manual
    • Shipping Carton
    • C13 IEC Lock Safety Socket-Main Cable 2 m
    • 4/40 UNC Ballhead-Screwdriver

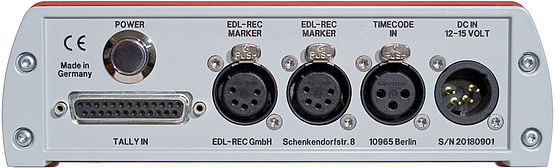

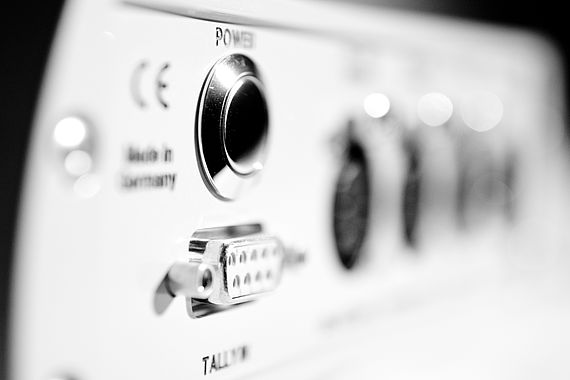

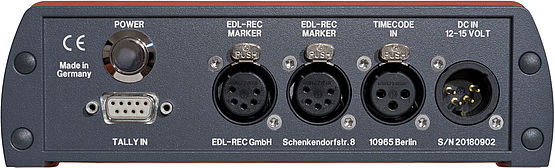

EDL-REC blk & pro

  • In/Out:
    • Tally In – parallel:
      • 9 / 25 pin D-Sub Connector (female)
      • Voltage range 0-48 Volt
    • EDL-REC Bus:
      • 2 x XLR 5 pin Connector (female)
      • 12 Volt
      • not DMX!
    • In:
      • Power 12-15 VDC – XLR 4 pin Connector (male)
      • LTC EBU/SMPTE – XLR 3 pin Connector (female)
    • PC:
      • DVI-I (incl. VGA) 1280 x 1024 Resolution
      • 3 x USB Type A Connector
  • External Power Supply: 90-260 VAC | 47–63 Hz
  • Power Consumption: max. 0.2 A (Standby 0.04 A)
  • Operating Environment: -10 bis +50°C
  • Standards: CE, EN
  • Dimensions & Weight:
    • 190 x 58 x 240 / 300 mm
    • 1.9 / 2.2 kg
  • Delivery Contents:
    • EDL-Recorder pro
    • External Power Supply
    • Operation Manual
    • Shipping Carton
    • C13 IEC Lock Safety Socket-Main Cable 2 m
  • EDL-REC Supplies
    • Markers
      • red, green, blue, yellow, grey
      • 3 m Cable
    • Marker-Distributor
      • 1 to 5
    • Marker Cable Extension
      • 10, 25, 50 m

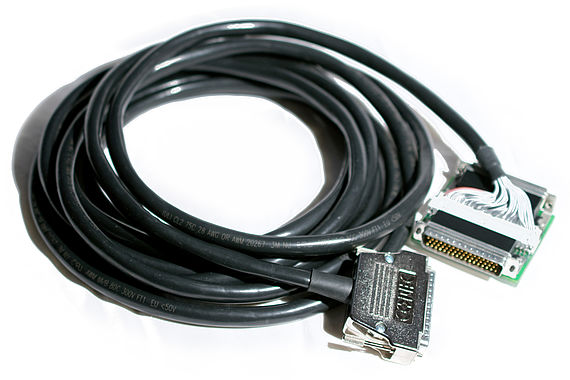

    • Tally Splitter
      • 9, 15, 25, 37, 50 pin
      • each comes with 5 m Tally Cable ending on D-Sub 50 Connector (male)
    • XLR Tally Patch Cable
      • 8 x XLR 3 pin 5 m Tally Cable ending on D-Sub 50 Connector (male)
  • Compatible Supplies:
    • Peli Case
      • 1600 (without wheels)
      • 1610 / 1650 (with wheels)
